VCT-G | FUHRER

Attribute:

Flexible conductor for mobile electrical equipment

Core :

Size :

Categories : Brand FUHRER Products range VCT-G

Brand : FUHRER

VCT-G

450/750V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED WITH GROUND, ROUND TYPE

Type : VCT-G, Flexible conductor PVC insulated and sheath, round type with ground wire
Brand : FUHRER
Number of Core : Up to 4 cores + Ground
Conductor : Flexible stranded annealed copper wire, Sizes 1.0 mm² up to 35 mm²
Insulation : Polyvinyl chloride (PVC/D)

Core Identification : 2-Cores + Ground; Blue, Brown + Green/Yellow

                                      3-Cores+ Ground; Brown, Black, Grey + Green/Yellow

                                      4-Cores+ Ground; Blue, Brown, Black, Grey + Green/Yellow

Shealth : PVC / Colour : Black
Classification : Maximum conductor temperature 70°C. Circuit voltage not exceeding 750 Volts
Testing Voltage : 2,500 Volts
Reference : TIS 11 Part 101-2559

***Prices shown are base prices. Customers can request a discount by these contact channels*

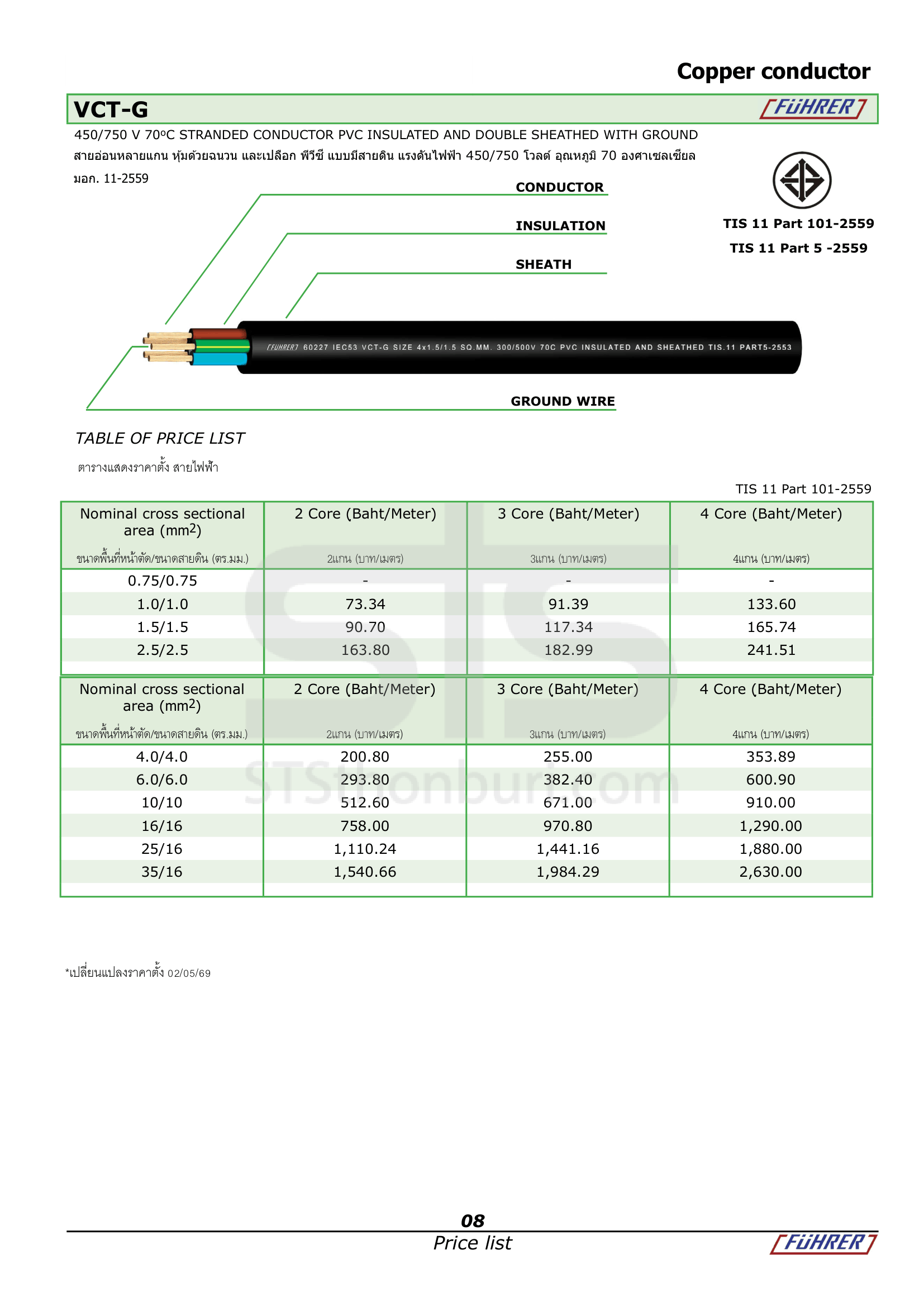

Table of Price List

Name and Size (mm²)
ชื่อและขนาด (ตร.มม.)
Number of Core
จำนวนแกน
2 Core(Baht/Meter)
2 แกน(บาท/เมตร)
3 Core(Baht/Meter)
3 แกน(บาท/เมตร)
4 Core(Baht/Meter)
4 แกน(บาท/เมตร)
สายไฟ VCT-G 0.75/0.75 mm²---
สายไฟ VCT-G 1/1 mm²35.4044.1064.00
สายไฟ VCT-G 1.5/1.5 mm²43.9056.8079.50
สายไฟ VCT-G 2.5/2.5 mm²79.4088.70116.00
สายไฟ VCT-G 4/4 mm²100.40127.50176.94
สายไฟ VCT-G 6/6 mm²146.90191.20300.45
สายไฟ VCT-G 10/10 mm²256.30335.50455.00
สายไฟ VCT-G 16/16 mm²379.00485.40645.00
สายไฟ VCT-G 25/16 mm²555.12720.58940.00
สายไฟ VCT-G 35/16 mm²770.33992.711,315.00

Products are in the roll of 100 meters

If customers would like to order special length, please contact us by these channels.
