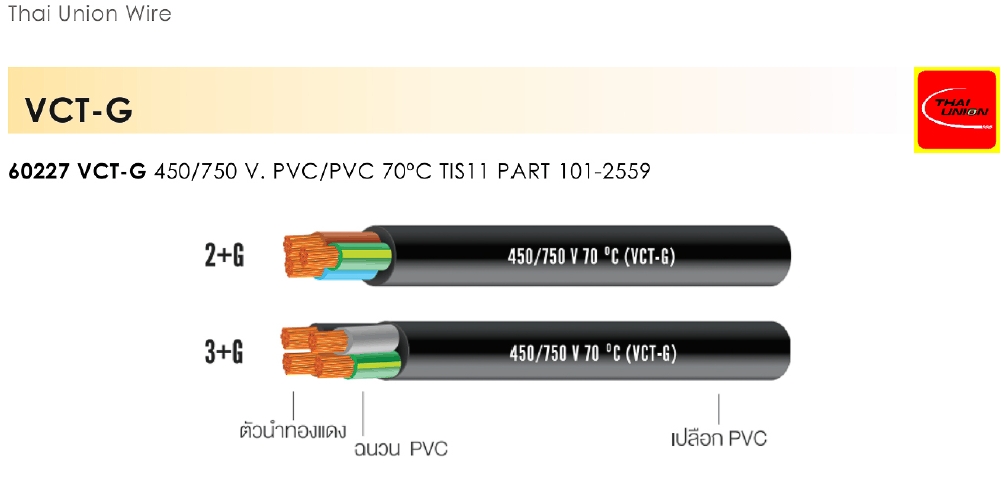

VCT-G
300/500V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED WITH GROUND, ROUND TYPE
Type : VCT-G, copper conductor flexible cable 2-4core, PVC insulated and sheathed with ground
Brand : THAI UNION
Number of Core : Up to 4 cores
Conductor : Flexible copper conductor with ground wire, size 1.0 mm² up to 35 mm²
Insulation : Polyvinyl chloride (PVC/D) Colour : Natural (Translucent),
Core Identification : 2-Cores +Ground; Blue, Brown +Green/Yellow
3-Cores +Ground; Brown, Black, Grey +Green/Yellow
4-Cores +Ground; Blue, Brown, Black, Grey +Green/Yellow
Shealth : PVC / Colour : Black
Classification : Maximum conductor temperature 70°C. Circuit voltage not exceeding 300/500 Volts
Reference : TIS 11 Part 5-2553
**Prices shown are base prices. Customers can request a discount by these contact channels**

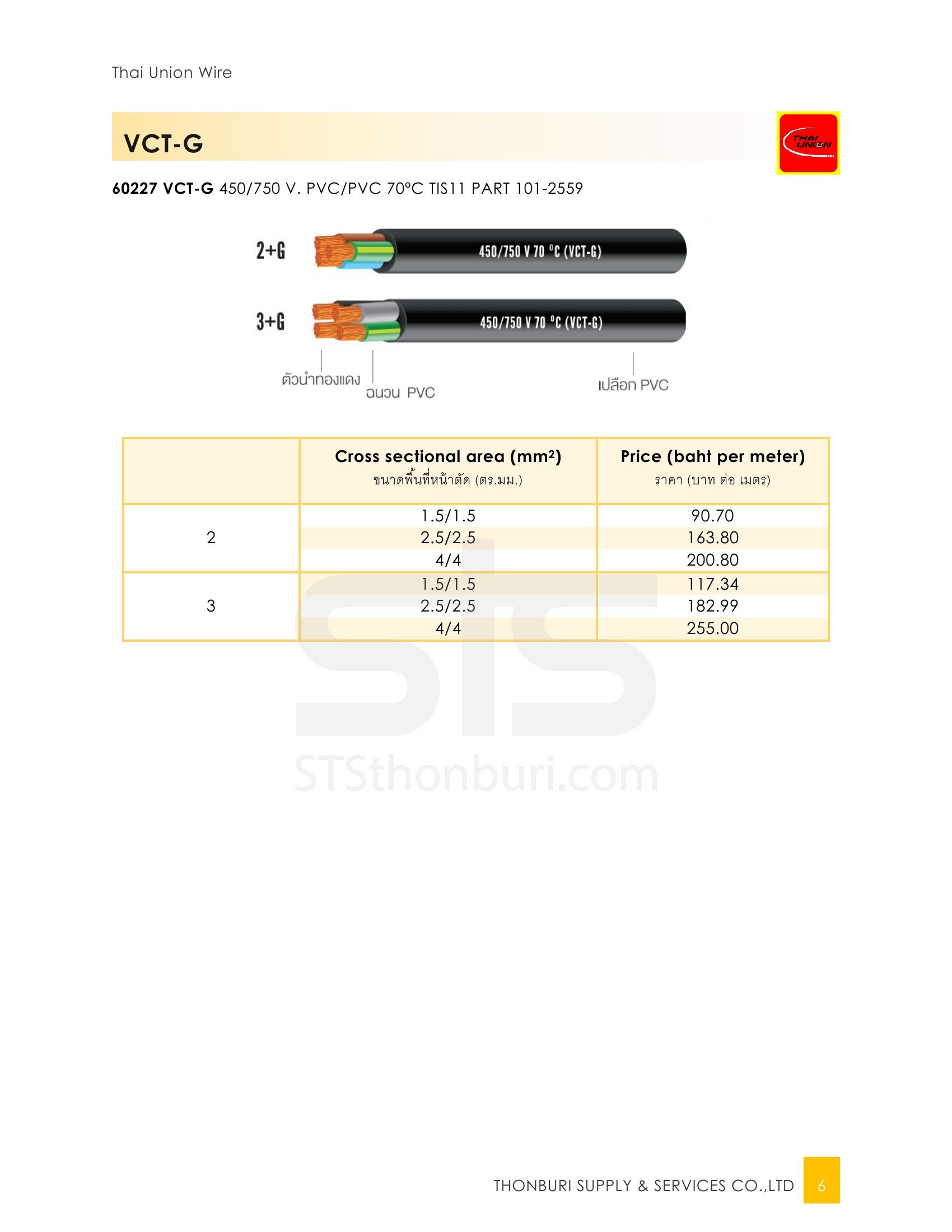

Table of Price List
| Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | Number of Core จำนวนแกน | ||
| 2 Core(Baht/Meter) 2 แกน(บาท/เมตร) | 3 Core(Baht/Meter) 3 แกน(บาท/เมตร) | 4 Core(Baht/Meter) 4 แกน(บาท/เมตร) | |
| สายไฟ VCT-G 1/1 mm² | 35.40 | 44.10 | 64.00 |
| สายไฟ VCT-G 1.5/1.5 mm² | 43.90 | 56.80 | 79.50 |
| สายไฟ VCT-G 2.5/2.5 mm² | 79.40 | 88.70 | 116.00 |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels.
