0.6/1KV-CV | Thai Union
Attribute:
600/1000V, XLPE insulated PVC SHEATHED POWER CABLE
Core :
Diameter :
Categories : Brand , Thai Union , Products range , CV ,
Brand : Thai Union
Share
0.6/1 KV-CV | Thai Union
(600V/1000V 90°C XLPE INSULATED, PVC SHEATHED POWER CABLE)
Type : 0.6/1KV-CV, XLPE insulated, PVC sheathed, copper conductor Brand : THAI UNION
Number of Core : Up to 4 cores
Conductor : Concentric stranded and compact round stranded annealed copper, Sizes 1.5 mm² up to 300 mm²
Insulation : Cross-linked polyethylene(XLPE), Colour : Natural (Translucent),
Core identification : 2-cores; Blue, Brown
3-cores; Brown, Black, Grey
4-cores; Blue, Brown, Black, Grey
Shealth : PVC / Colour : Black
Classification : Maximum conductor temperature 90°C. Circuit voltage not exceeding 1,200 volts
Reference : TIS 2143-2546, IEC 60502-1
**Prices shown are base prices. Customers can request a discount by these contact channels**

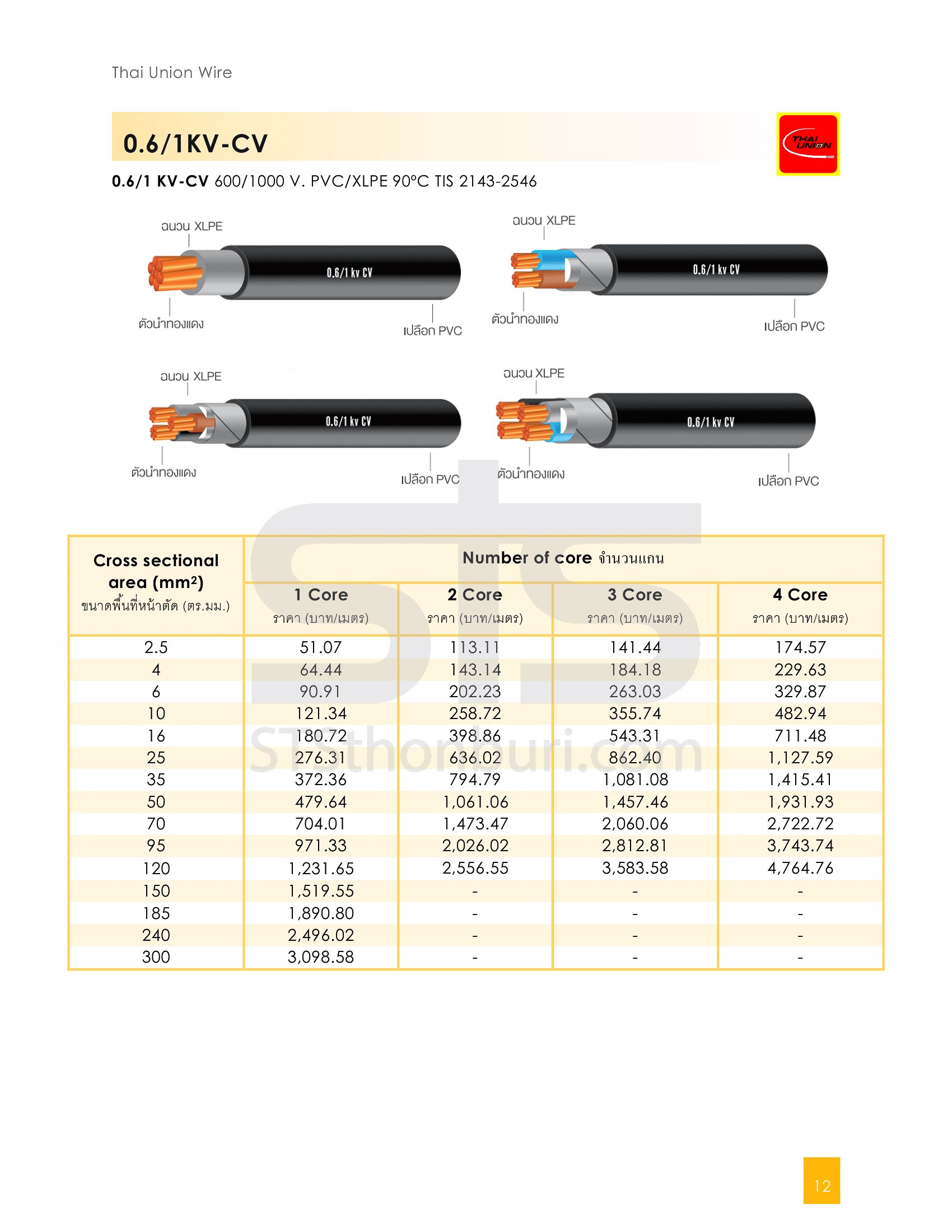

Table of Price List
| Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | Number of Core จำนวนแกน | |||
| 1 Core(Baht/Meter) 1 แกน(บาท/เมตร) | 2 Core(Baht/Meter) 2 แกน(บาท/เมตร) | 3 Core(Baht/Meter) 3 แกน(บาท/เมตร) | 4 Core(Baht/Meter) 4 แกน(บาท/เมตร) | |
| สายไฟ CV 2.5 mm² | 51.07 | 113.11 | 141.44 | 174.57 |
| สายไฟ CV 4.0 mm² | 64.44 | 143.14 | 184.18 | 229.63 |
| สายไฟ CV 6.0 mm² | 90.91 | 202.23 | 263.03 | 329.87 |
| สายไฟ CV 10 mm² | 121.34 | 258.72 | 355.74 | 482.94 |
| สายไฟ CV 16 mm² | 180.72 | 398.86 | 543.31 | 711.48 |
| สายไฟ CV 25 mm² | 276.31 | 636.02 | 862.40 | 1,127.59 |
| สายไฟ CV 35 mm² | 372.36 | 794.79 | 1,081.08 | 1,415.41 |
| สายไฟ CV 50 mm² | 479.64 | 1,061.06 | 1,457.46 | 1,931.93 |
| สายไฟ CV 70 mm² | 704.01 | 1,473.47 | 2,060.06 | 2,722.72 |
| สายไฟ CV 95 mm² | 971.33 | 2,026.02 | 2,812.81 | 3,743.74 |
| สายไฟ CV 120 mm² | 1,231.65 | 2,556.55 | 3,583.58 | 4,764.76 |
| สายไฟ CV 150 mm² | 1,519.55 | - | - | - |
| สายไฟ CV 185 mm² | 1,890.80 | - | - | - |
| สายไฟ CV 240 mm² | 2,496.02 | - | - | - |
| สายไฟ CV 300 mm² | 3,098.58 | - | - | - |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
Tel : 094-325-5151 / 02-8640982-4
Line : @sts7744 (มี@)
Email : sts.thonburi@gmail.com
Facebook : www.facebook.com/ststhonburi
