CVV | FUHRER
Attribute:
Wholesaler of electric wire and cable, Control cable without shield
Core :
Diameter :
Categories : Brand , FUHRER , Products range , CVV ,
Brand : FUHRER
CVV | FUHRER

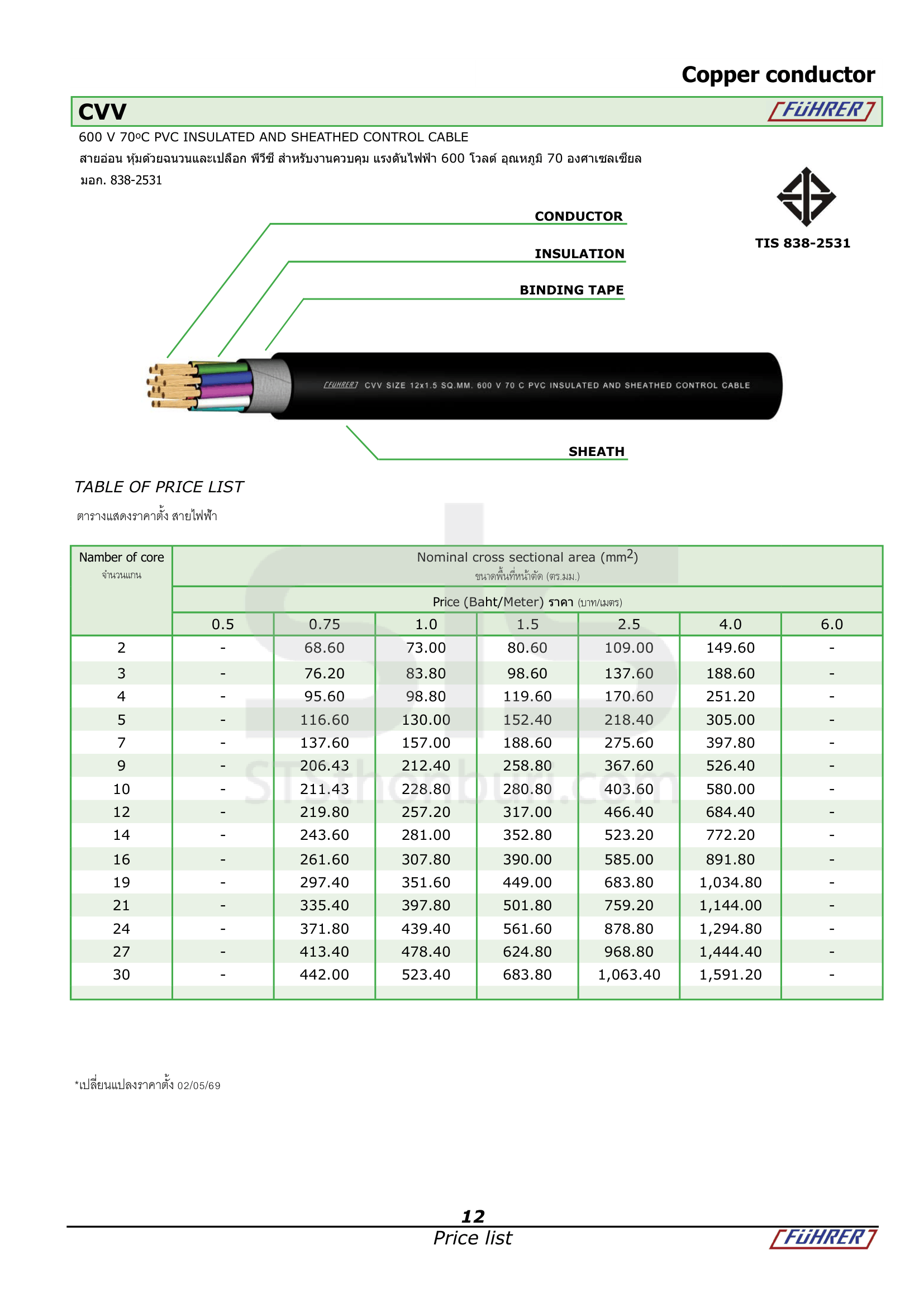

600V 70°C PVC INSULATED AND SHEATHED CONTROL CABLE
Type : CVV PVC insulated and sheathed control cable without shieldBrand : FUHRER
Number of Core : 2 up to 48 cores
Conductor : Flexible stranded annealed copper wires, Size 0.5 mm² up to 6 mm²
Insulation : PVC, Colour 2-4 cores: Black, White, Red and Green. More than 4 cores: Any colour
Shealth : PVC / Colour : Black
BINDING TAPE : Paper tape of milar tape
Classification : Maximum conductor temperature 70°C. Circuit voltage not exceeding 600 volts
Testing Voltage : 2,000 Volts
Reference : FUHRER WIRE AND CABLE STANDARD
**Prices shown are base prices. Customers can request a discount by these contact channels**
Table of Price List
| Number of Core จำนวนแกน | Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | ||||||
| Price (Baht/Meter) ราคา (บาท/เมตร) | |||||||
| 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | |
| CVV 2 core | - | 68.60 | 73.00 | 80.60 | 109.00 | 149.60 | - |
| CVV 3 core | - | 76.20 | 83.80 | 98.60 | 137.60 | 188.60 | - |
| CVV 4 core | - | 95.60 | 98.80 | 119.60 | 170.60 | 251.20 | - |
| CVV 5 core | - | 116.60 | 130.00 | 152.40 | 218.40 | 305.00 | - |
| CVV 7 core | - | 137.60 | 157.00 | 188.60 | 275.60 | 397.80 | - |
| CVV 9 core | - | 206.43 | 212.40 | 258.80 | 367.60 | 526.40 | - |
| CVV 10 core | - | 211.43 | 228.80 | 280.80 | 403.60 | 580.00 | - |
| CVV 12 core | - | 219.80 | 257.20 | 317.00 | 466.40 | 684.40 | - |
| CVV 14 core | - | 243.60 | 281.00 | 352.80 | 523.20 | 772.20 | - |
| CVV 16 core | - | 261.60 | 307.80 | 390.00 | 585.00 | 891.80 | - |
| CVV 19 core | - | 297.40 | 351.60 | 449.00 | 683.80 | 1,034.80 | - |
| CVV 21 core | - | 335.40 | 397.80 | 501.80 | 759.20 | 1,144.00 | - |
| CVV 24 core | - | 371.80 | 439.40 | 561.60 | 878.80 | 1,294.80 | - |
| CVV 27 core | - | 413.40 | 478.40 | 624.80 | 968.80 | 1,444.40 | - |
| CVV 30 core | - | 442.00 | 523.40 | 683.80 | 1,063.40 | 1,591.20 | - |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
Tel : 094-325-5151 / 02-8640982-4
Line : @sts7744 (มี@)
Email : sts.thonburi@gmail.com
Facebook : www.facebook.com/ststhonburi
