NYY-G | FUHRER
Attribute:
Copper conductor with double sheathed with ground wire. This cable can be buried directly in the ground
Core :
Diameter :
Categories : Brand , FUHRER , Products range , NYY-G ,
Brand : FUHRER
NYY-G | FUHRER
450/750V 70°C STRANED CONDUCTOR, PVC INSULATED AND DOUBLE SHEATHED WITH GROUND
Type : NYY-G Copper straned conductor with double sheathed with ground wireBrand : FUHRER
Number of Core : Up to 4 cores
Conductor : Solid and stranded annealed copper, Sizes 1 mm² up to 300 mm²
Insulation : Polyvinyl chloride(PVC)
Core identification : 2-cores + ground; Blue, Brown + Green/Yellow
3-cores+ground; Brown, Black, Grey + Green/Yellow
4-cores+ground; Blue, Brown, Black, Grey + Green/Yellow
Shealth : PVC / Colour : Black
Classification : Maximum conductor temperature 70°C. Circuit voltage not exceeding 750 volts
Testing Voltage : 2,500 Volts
Reference : TIS 11 PART 101-2559
**Prices shown are base prices. Customers can request a discount by these contact channels**

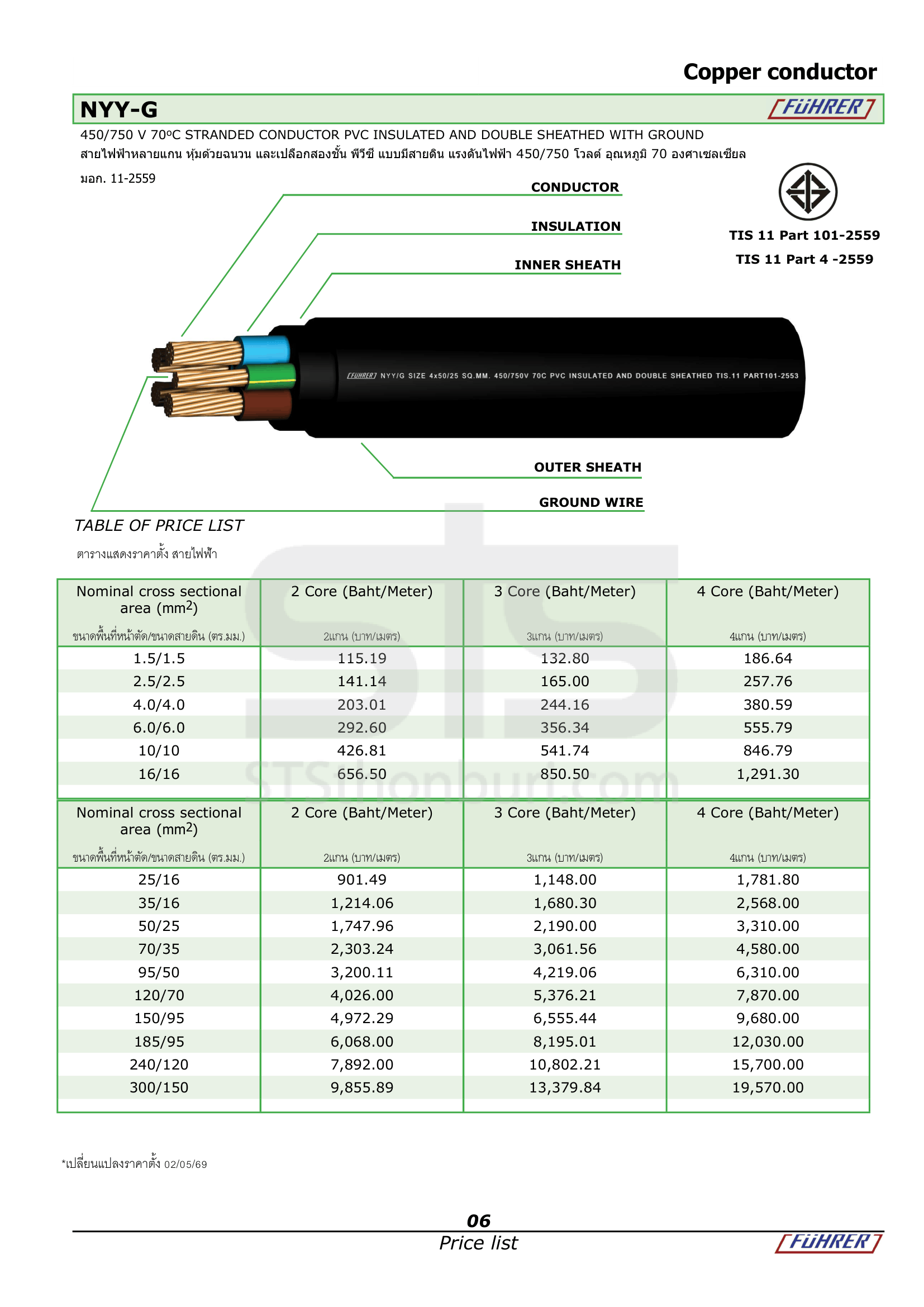

ตารางแสดงราคาตั้ง สายไฟฟ้า (Table of Price List)
| Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | Number of Core จำนวนแกน | ||
| 2 Core(Baht/Meter) 2 แกน(บาท/เมตร) | 3 Core(Baht/Meter) 3 แกน(บาท/เมตร) | 4 Core(Baht/Meter) 4 แกน(บาท/เมตร) | |
| NYY-G 1.5/1.5 mm² | 115.19 | 132.80 | 186.64 |
| NYY-G 2.5/2.5 mm² | 141.14 | 165.00 | 257.76 |
| NYY-G 4/4 mm² | 203.01 | 244.16 | 380.59 |
| NYY-G 6/6 mm² | 292.60 | 356.34 | 555.79 |
| NYY-G 10/10 mm² | 426.81 | 541.74 | 846.79 |
| NYY-G 16/16 mm² | 656.50 | 850.50 | 1,291.30 |
| NYY-G 25/16 mm² | 901.49 | 1,148.00 | 1,781.80 |
| NYY-G 35/16 mm² | 1,214.06 | 1,680.30 | 2,568.00 |
| NYY-G 50/25 mm² | 1,747.96 | 2,190.00 | 3,310.00 |
| NYY-G 70/35 mm² | 2,303.24 | 3,061.56 | 4,580.00 |
| NYY-G 95/50 mm² | 3,200.11 | 4,219.06 | 6,310.00 |
| NYY-G 120/70 mm² | 4,026.00 | 5,376.21 | 7,870.00 |
| NYY-G 150/95 mm² | 4,972.29 | 6,555.44 | 9,680.00 |
| NYY-G 185/95 mm² | 6,068.00 | 8,195.01 | 12,030.00 |
| NYY-G 240/120 mm² | 7,892.00 | 10,802.21 | 15,700.00 |
| NYY-G 300/150 mm² | 9,855.89 | 13,379.84 | 19,570.00 |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
Tel : 094-325-5151 / 02-8640982-4
Line : @sts7744 (มี@)
Email : sts.thonburi@gmail.com
Facebook : www.facebook.com/ststhonburi
