NYY (Multi core) | FUHRER
Attribute:
Copper stranded conductor with double sheathed, Number of core 2 to 4 cores.This cable can be buried directly on the ground
Core :
Diameter :
Categories : Brand , FUHRER , Products range , NYY ,
Brand : FUHRER
NYY | FUHRER
450/750V 70°C STRANED CONDUCTOR, PVC INSULATED AND DOUBLE SHEATHED
Type : NYY cable, Copper stranded conductor, PVC insulated with double sheathedBrand : FUHRER
Number of Core : Up to 4 cores
Conductor : Solid and stranded annealed copper, Sizes 1.5 mm² up to 300 mm²
Insulation : Polyvinyl chloride(PVC)
Core identification : 2-cores; Blue, Brown
3-cores; Brown, Black, Grey
4-cores; Blue, Brown, Black, Grey
Shealth : Polyvinyl chloride(PVC) / Colour : Black
Classification : Maximum conductor temperature 70°C. Circuit voltage not exceeding 750 volts
Testing Voltage : 2,500 Volts
Reference : TIS 11 PART 101-2559
**Prices shown are base prices. Customers can request a discount by these contact channels**

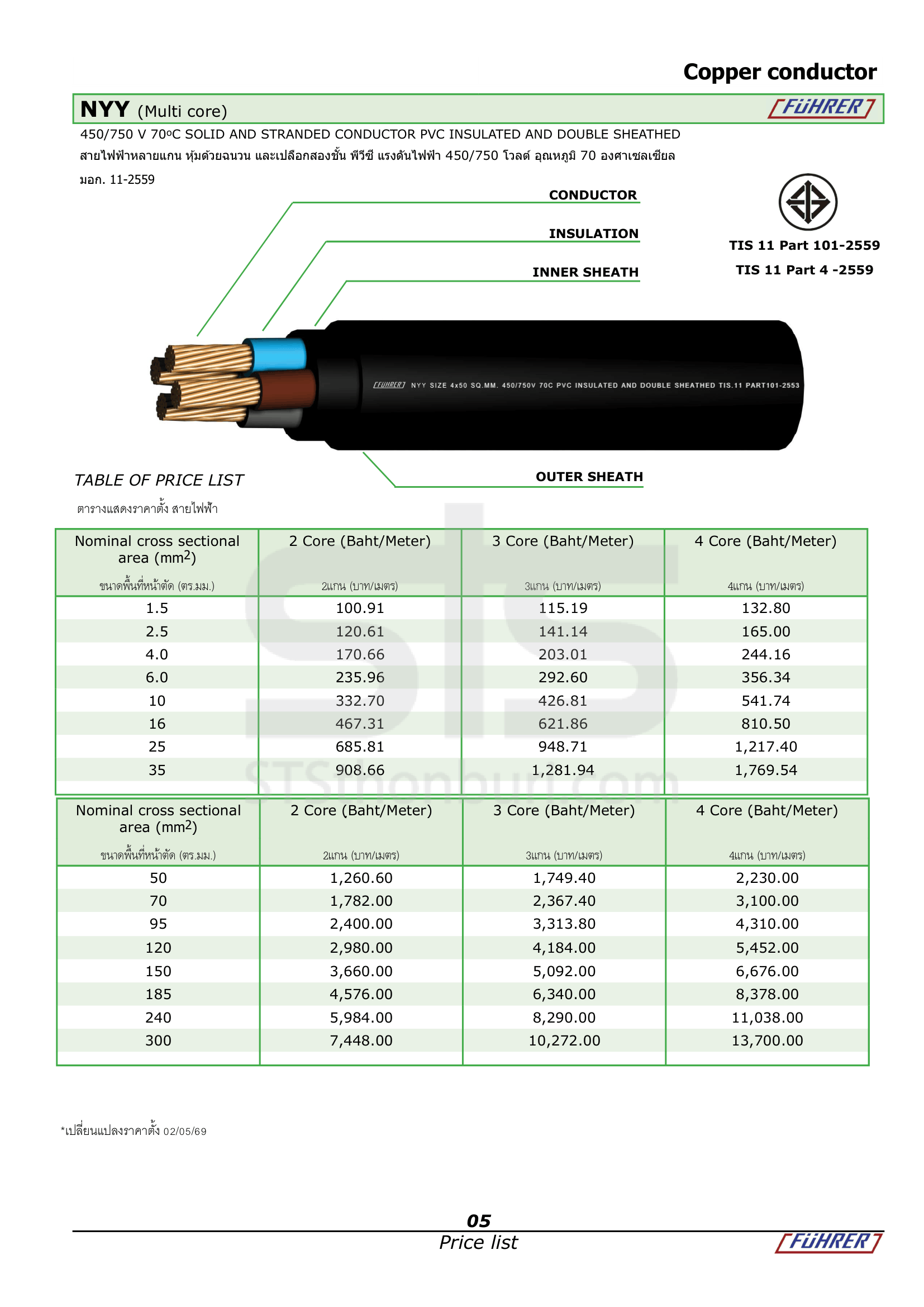

Table of Price List
| Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | Number of Core จำนวนแกน | ||
| 2 Core(Baht/Meter) 2 แกน(บาท/เมตร) | 3 Core(Baht/Meter) 3 แกน(บาท/เมตร) | 4 Core(Baht/Meter) 4 แกน(บาท/เมตร) | |
| NYY 1.5 mm² | 100.91 | 115.19 | 132.80 |
| NYY 2.5 mm² | 120.61 | 141.14 | 165.00 |
| NYY 4 mm² | 170.66 | 203.01 | 244.16 |
| NYY 6 mm² | 235.96 | 292.60 | 356.34 |
| NYY 10 mm² | 332.70 | 426.81 | 541.74 |
| NYY 16 mm² | 467.31 | 621.86 | 810.50 |
| NYY 25 mm² | 685.81 | 948.71 | 1,217.40 |
| NYY 35 mm² | 908.66 | 1,281.94 | 1,769.54 |
| NYY 50 mm² | 1,260.60 | 1,749.40 | 2,230.00 |
| NYY 70 mm² | 1,782.00 | 2,367.40 | 3,100.00 |
| NYY 95 mm² | 2,400.00 | 3,313.80 | 4,310.00 |
| NYY 120 mm² | 2,980.00 | 4,184.00 | 5,452.00 |
| NYY 150 mm² | 3,660.00 | 5,092.00 | 6,676.00 |
| NYY 185 mm² | 4,576.00 | 6,340.00 | 8,378.00 |
| NYY 240 mm² | 5,984.00 | 8,290.00 | 11,038.00 |
| NYY 300 mm² | 7,448.00 | 10,272.00 | 13,700.00 |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
Tel : 094-325-5151 / 02-8640982-4
Line : @sts7744 (มี@)
Email : sts.thonburi@gmail.com
Facebook : www.facebook.com/ststhonburi
